Fullex Crimebeater Latch 3 Deadbolts Double Spindle 35/45/55mm Backset - 20mm Faceplate

Crimebeater Lock with Additional Deadbolts – Technical Specifications

This Crimebeater lock includes two extra deadbolts within 20mm faceplates.

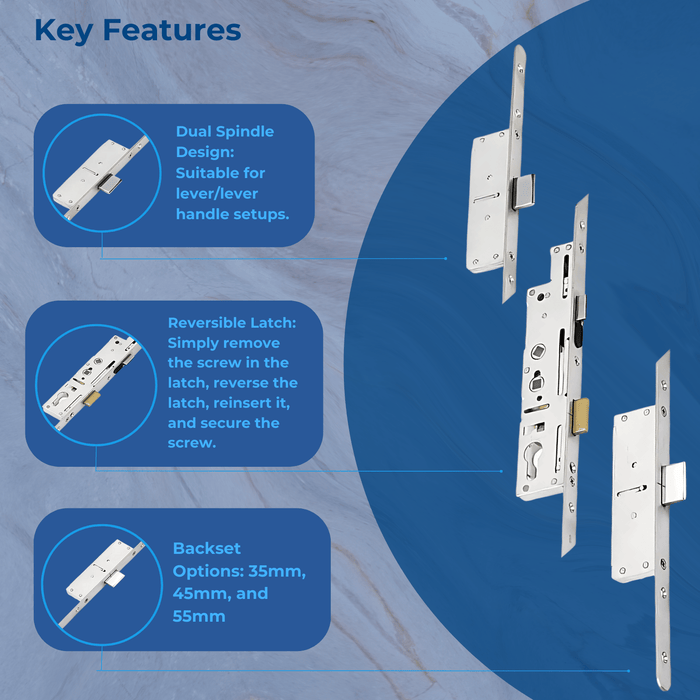

Backset Options

35mm, 45mm, and 55mm

Operation

Lift lever or double spindle nightlatch

Latch Reversal

Simply remove the screw in the latch, reverse the latch, reinsert it, and secure the screw.

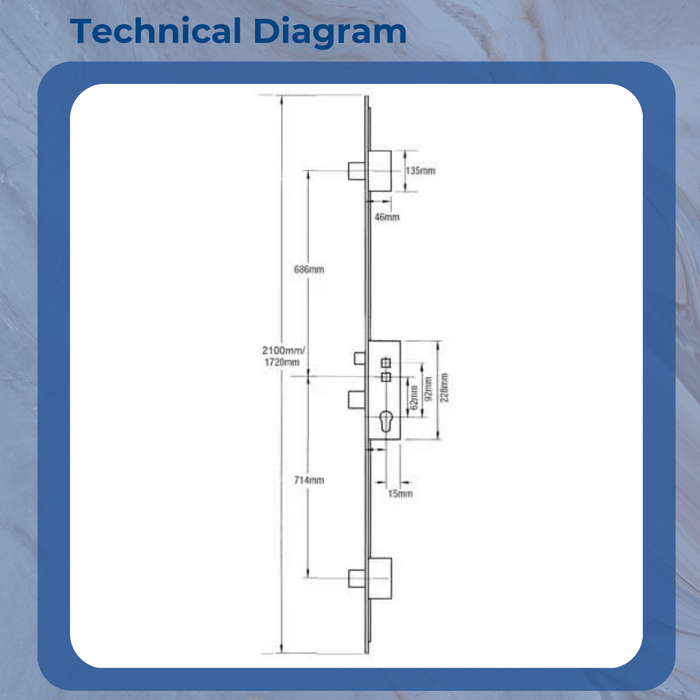

Technical Information

• Centres: 92mm / 62mm
• Case Height: 228mm
• Case Depth: Backset + 15mm

Overall Lengths

• SL163516: 2100mm – Flat 16mm
• SL164516: 2100mm – Flat 16mm
• SL1635: 1720mm – Radius 20mm
• SL1645: 1720mm – Radius 20mm
• SL1655: 1720mm – Radius 20mm

Distance Between Deadbolts: 1400mm
