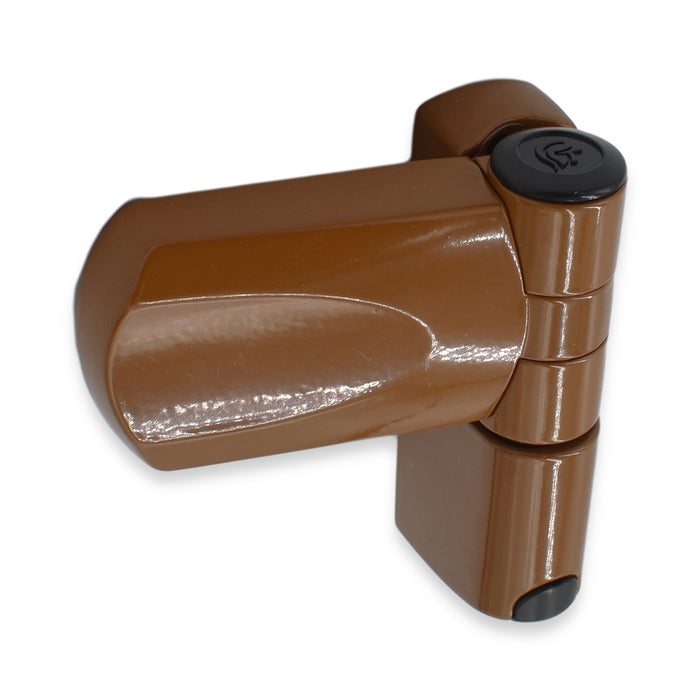

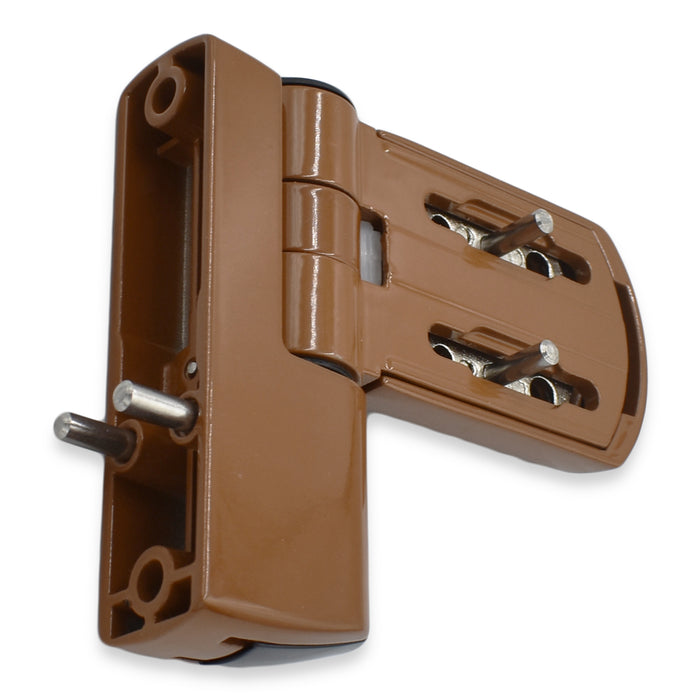

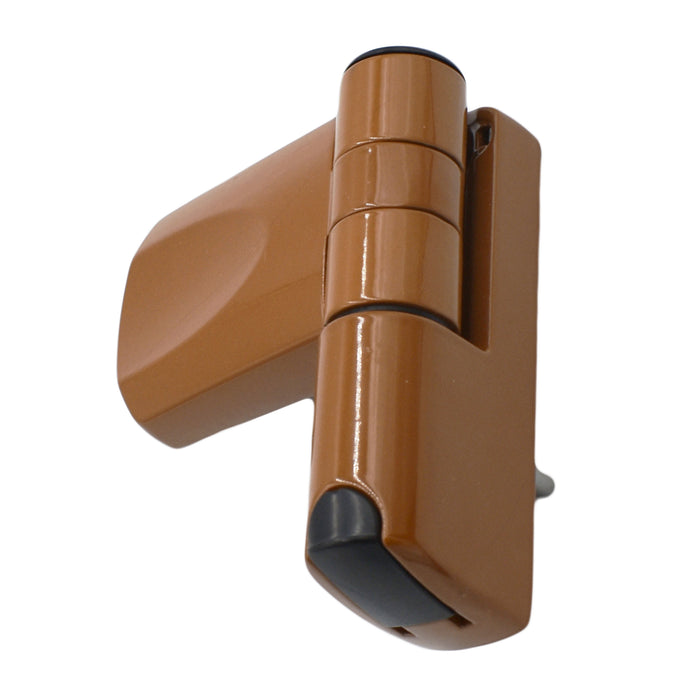

TROJAN PATRIOT FLAG HINGE IN OAK BROWN FOR UPVC DOOR
by UPVCSTORE
Sold out
Original price
$82.00
-
Original price
$82.00
Original price
$82.00
$82.00
-
$82.00
Current price
$82.00
Product Manufacture Code- TRO-0740-2005-OAK Extremely rare discontinued Patriot Flag Hinge
Trojan Patriot Flag Door Hinges
A door hinge ideal for UPVC door profiles, adjustable in 3 dimensions with concentric compression adjustment.
KEY PRODUCT FEATURES
- Pre assembled ready to fit.
- Unique integral flag cover allowing easy access to lateral adjustment.
- Compression adjusts in linear motion with no affect on lateral adjustment which reduces the possibility of the door ‘binding’ in operation.
- Available in a range of finishes including Gold (PVD), Brown Oak
- All finishes are UV rated.
TESTING AND ACCREDITATION
Salt Spray - Zinc substrate has been tested at an independent UKAS test laboratory to BS EN 1670 and has achieved grade 4 classification across all finishes.
PAS 23/24 compatible.
Operational durability - tested to 100,000 cycles.
PRODUCT MATERIAL SPECIFICATIONS
Zinc die cast components - ZL2.
Stainless steel parts are - 430 S17 stainless steel.
Plastic parts are Nylon 66, UV stabilised ABS and ACETAL.
NOMINAL STEP HEIGHTS AND SHIMS
High hinge - TRO-0740-2005-GO = 19.25mm stack height.
High shim - 0740-025 = 7.50mm
ADJUSTMENT
Height: + 7.0mm.
Compression: +/- 1.75mm.
Lateral: +/- 5.5mm.
MAXIMUM WEIGHT CARRYING CAPACITY
2 hinges 80kg - 3 hinges 120kg.
