White Era Laird Challenger 3D Butt Rebate Door Hinge for Timber Composite Doors composite door hinges

Fully 3D adjustable
Durable body
For use on timber and composite doors
Suitable for both inward and outward opening doors
1 x Hinge supplied (33.3 kg Weight capacity per hinge)

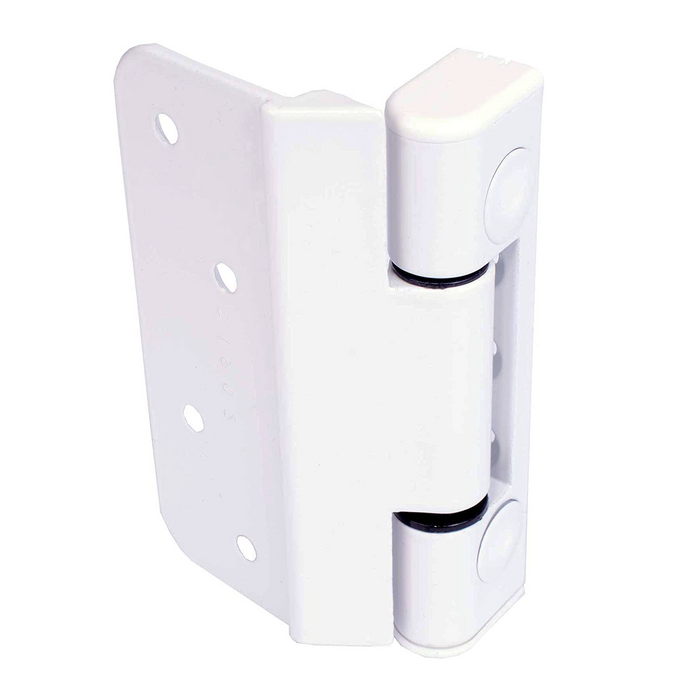

Era Challenger 3D Composite Door Rebate Butt Hinge White


This Era Challenger Composite Door Hinge has been especially designed to meet the requirements of BS EN 1670:2007 and is Grade 4 Corrosion Resistant (240 hours). It is suitable for use on composite and timber doors and is fully 3D adjustable (Lateral, Height and Compression). It features a secured security pin for inward and outward opening doors, a classic durable body with superior performance and weight loading capacity of 90kg if 3 hinges are used.


Features:


Meets BS EN 1670:2007 requirements
Grade 4 corrosion resistant (240 hours)
Endurance tested in excess of 50,000 cycles
Suitable for use on composite and timber doors
Suitable for use on inward and outward opening doors
Fully 3D adjustable
Secured Security Pin
Durable classic body
90kg Weight loading capacity if 3 hinges are used
What's in the pack?


1 x Era Challenger White Composite Door 3D Hinge Body


1 x Era Challenger White Composite Door 3D Hinge Flag


1 x Top Cap


1 x Bottom Cap


4 x Adjuster Cap


1 x Flag Bush


1 x Spring Bush


1 x Hinge Pin


Measurements


Lateral 3D adjustment: +2mm / -2mm


Vertical 3D adjustment:: +3mm


Compression 3D adjustment: +0.5mm / -0.5mm
