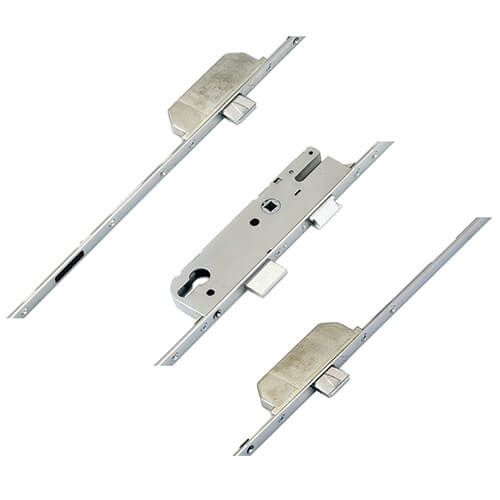

GU Europa Latch 3 Deadbolts Option 2 Lift Lever 35mm Backset
by GU
Original price
$132.00
-
Original price
$132.00
Original price
$132.00
$132.00
-
$132.00
Current price
$132.00
This version of the 2 deadbolt lock has 1600mm between the deadbolts.
A narrow version with 1228mm between the deadbolts is also available.
Backset: 35mm.
Centres: 92mm.
Operation: Lift lever.
Latch reversal: Push a flat bladed screwdriver into the small rectangular slot above spindle and pull out latch at same time. reverse and reinsert.
Technical Information-
- Centres: 92mm
- Case height: 195mm
- Case depth: Backset + 18mm
- Overall length: 2285mm
- Distance between deadbolts: 1600mm
- Top deadbolt to spindle: 730mm
- Bottom hook to spindle: 871mm
