Avocet Latch 3 Deadbolts 4 Rollers Double Spindle Multipoint Door Lock
by Avocet
Original price
$189.00
-
Original price
$189.00
Original price
$189.00
$189.00
-
$189.00
Current price
$189.00
The original Avocet 3 deadbolt, 4 roller lock features unique locking positions.
Backset: 35mm.
Centres: 92mm/62mm.
Operation: Lift lever or double spindle nightlatch.
Latch reversal: Depending on date of manufacture either - Undo hexagonal screw on side of lock case to remove latch. Reverse, reinsert and replace screw. Or undo screw in centre of latch, reverse, reinsert and replace screw.

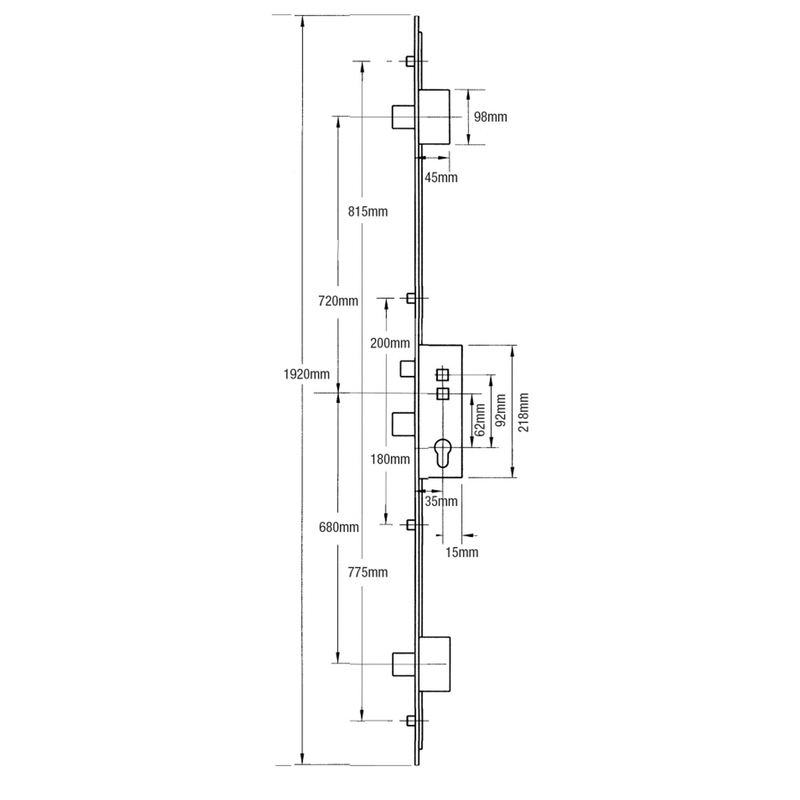

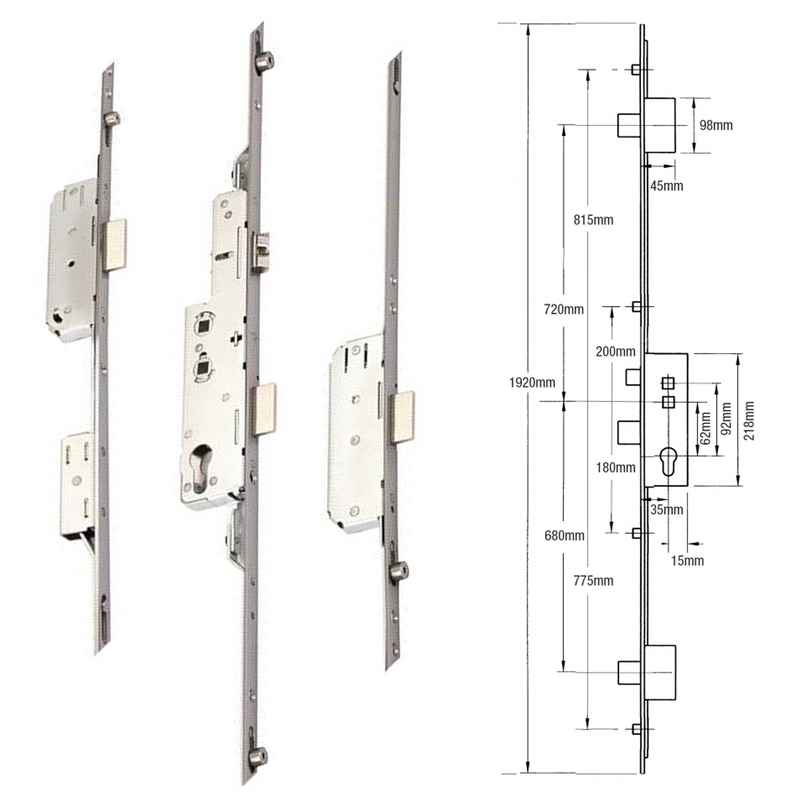

Technical Diagram-
Backset: 35mm.
Centres: 92mm/62mm.
Operation: Lift lever or double spindle nightlatch.
Latch reversal: Depending on date of manufacture either - Undo hexagonal screw on side of lock case to remove latch. Reverse, reinsert and replace screw. Or undo screw in centre of latch, reverse, reinsert and replace screw.
Technical Diagram-
