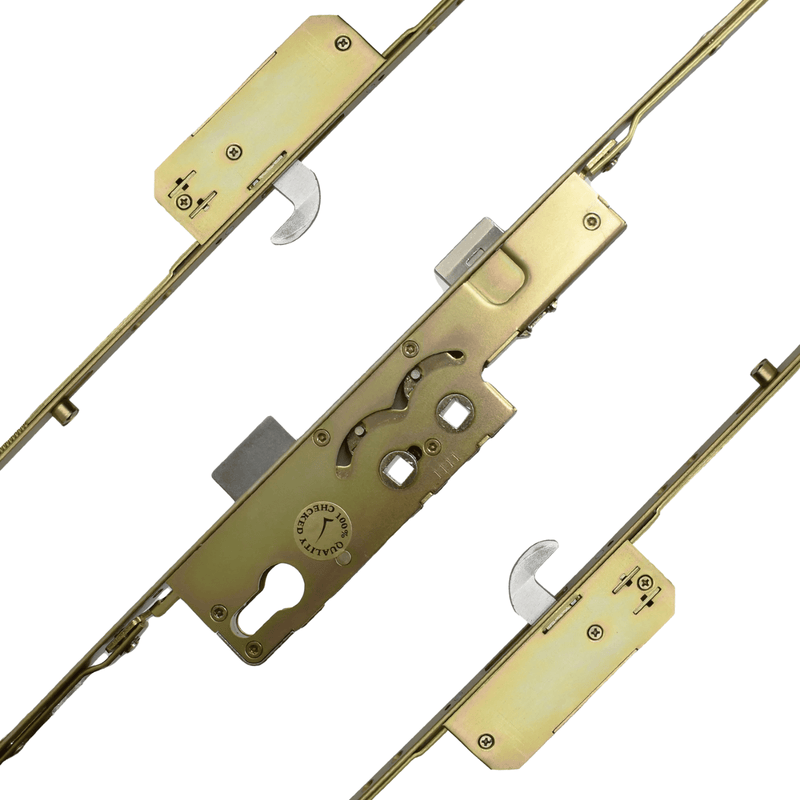

Avocet Wms Upvc Door Lock old Style 2 Hook 2 Roller Gold Plate 35mm Multi Point

Avocet Door Lock Gold Plate 35mm

Technical Specifications:

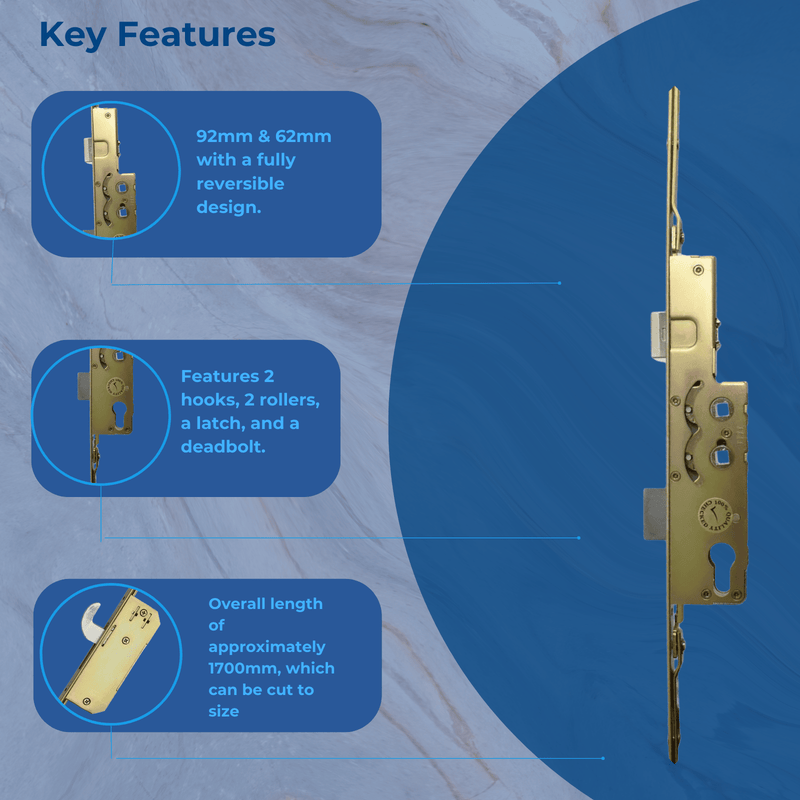

• Features: 2 Hooks & 2 Rollers
• Includes Latch & Deadbolt

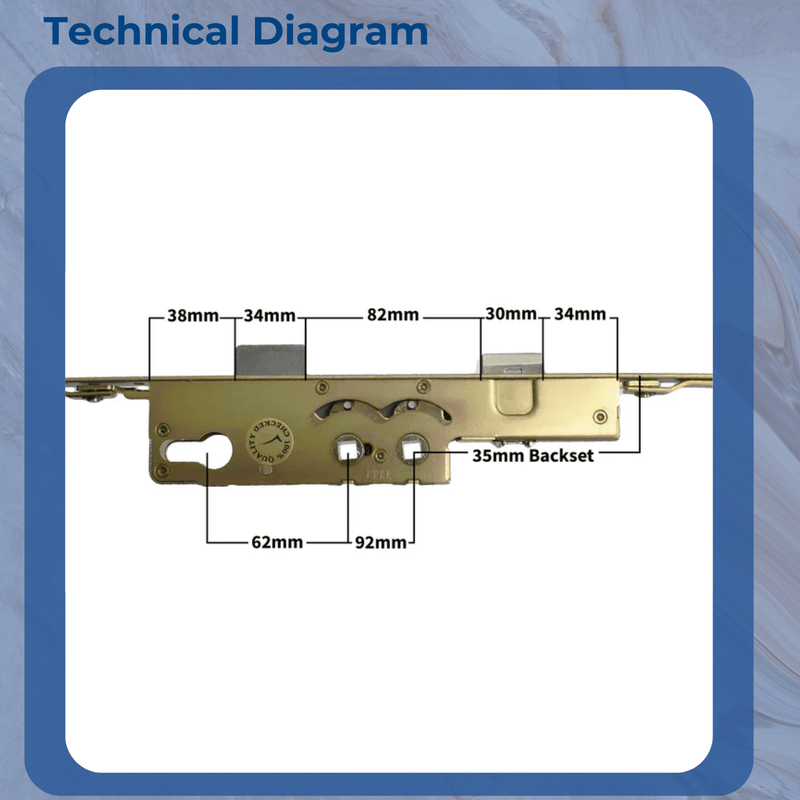

• Lock Case Dimensions: Height – 220mm, Width – 50mm
• Dual Handle Spindle Centres: 92mm & 62mm
• Faceplate Width: 16mm
• Fully Reversible Design

Hook & Roller Measurements:

(Measured from the center of the spindle, except for overall length)

• Overall Length: Approximately 1700mm (can be cut to size)
• Top Hook Position: 575mm
• Top Roller Position: 725mm
• Bottom Hook Position: 660mm
• Bottom Roller Position: 820mm
