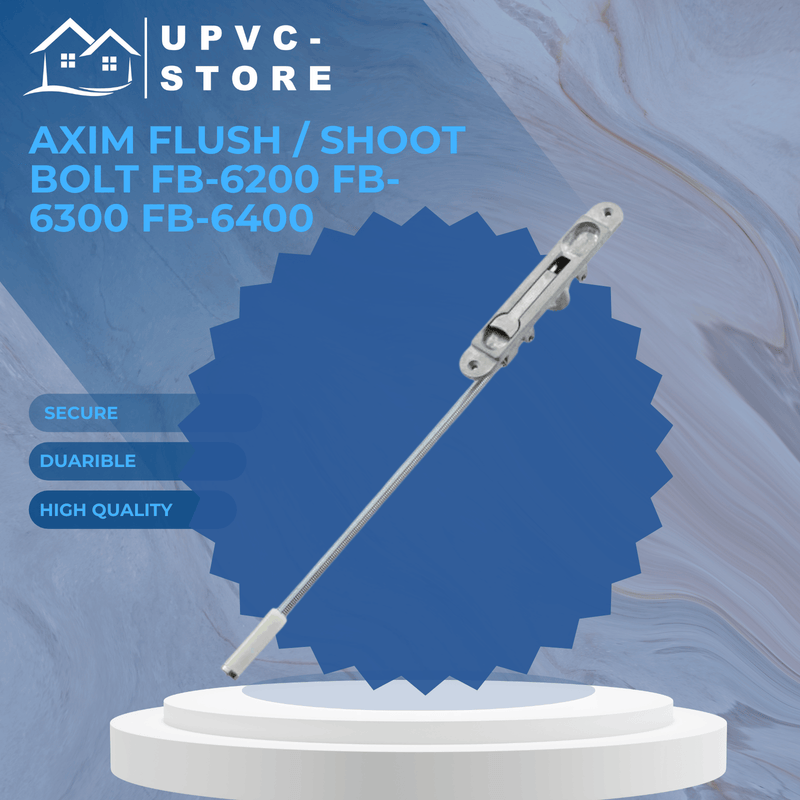

Axim Flush Bolts FB-6200 FB-6300 FB-6400 Lever Shoot Bolt Flat Or Radius Faced

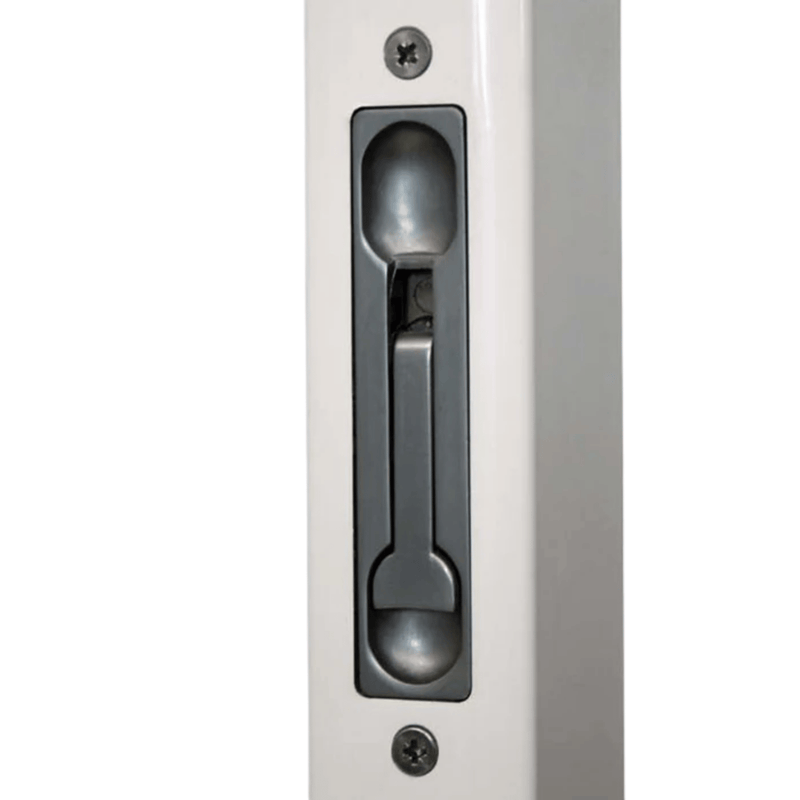

These FB-6200, FB-6300 and FB-6400 series finger-operated flush bolts work to secure the passive leaf on double aluminium door assemblies. They are rebated into the leading edge or inside face of the door and operated by a lever which sits flush when the bolt is engaged and the door is closed. To ensure ease of operation, Axim FB series flush bolts have a deep finger recess and large lever. A standard installation requires two flush bolts morticed into the top and bottom of the door. For maximum security the Axim flush bolt has a hardened steel bolt, zinc plated with an anti-rattle sleeve.

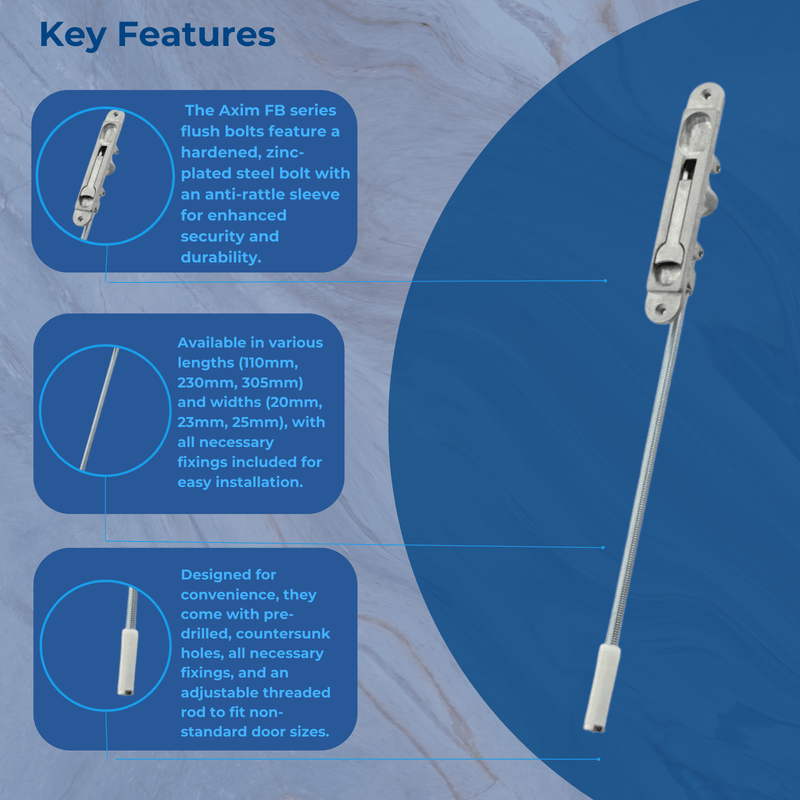

Key features:

• Smooth lever action flush bolts
• Mounted in the leading edge or inside face of the passive leaf of a pair of doors

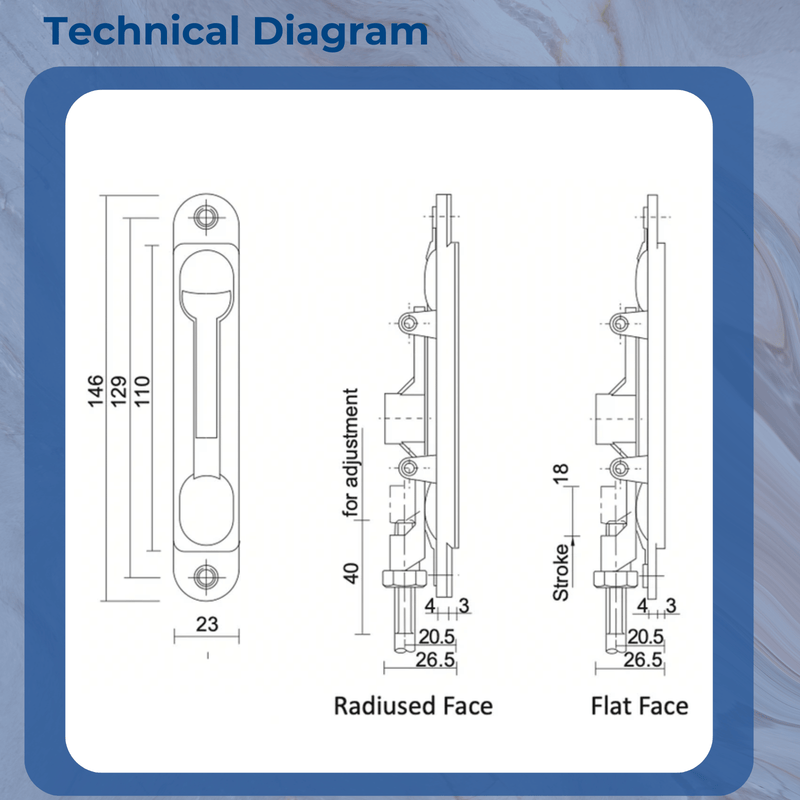

• Radiused faced or flat faced available
• Lengths available: 110mm, 230mm and 305mm
• Widths available: 20mm, 23mm and 25mm
• Silver satin chrome finish
• Strong zinc plated hardened steel bolt with anti-rattle sleeve
• 18mm bolt stroke
• Fully threaded 7mm zinc plated steel rod can be cut to size for non-standard door installations
• A centre punch helps locate the centre of the keep
• All holes are pre-drilled and countersunk for M fixings
• All fixings included for easy assembly

Guarantees & accreditations:

• Conforms to EN 1154
• 30-month manufacturer's guarantee
