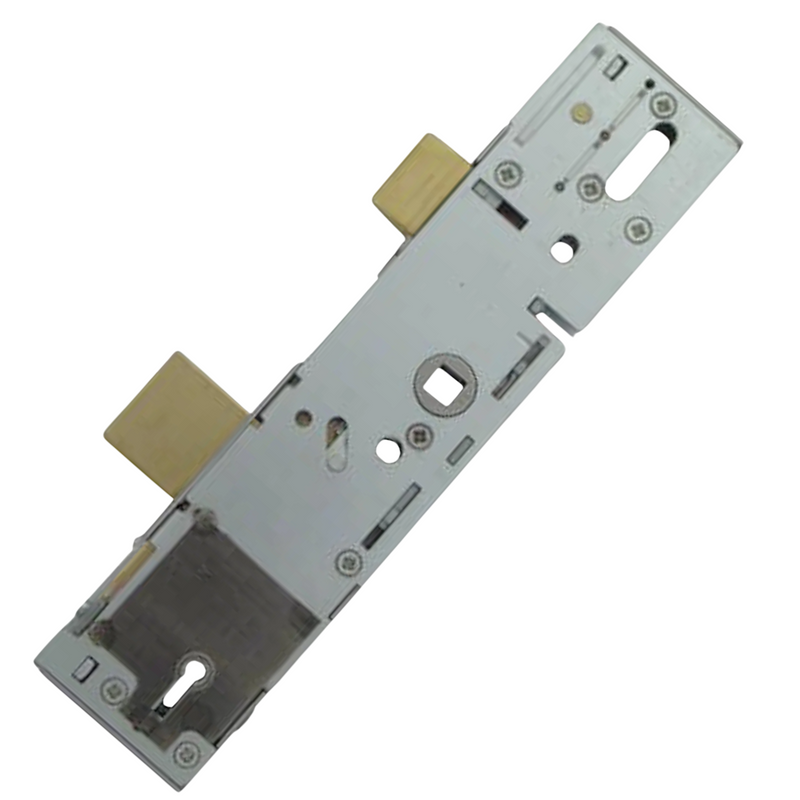

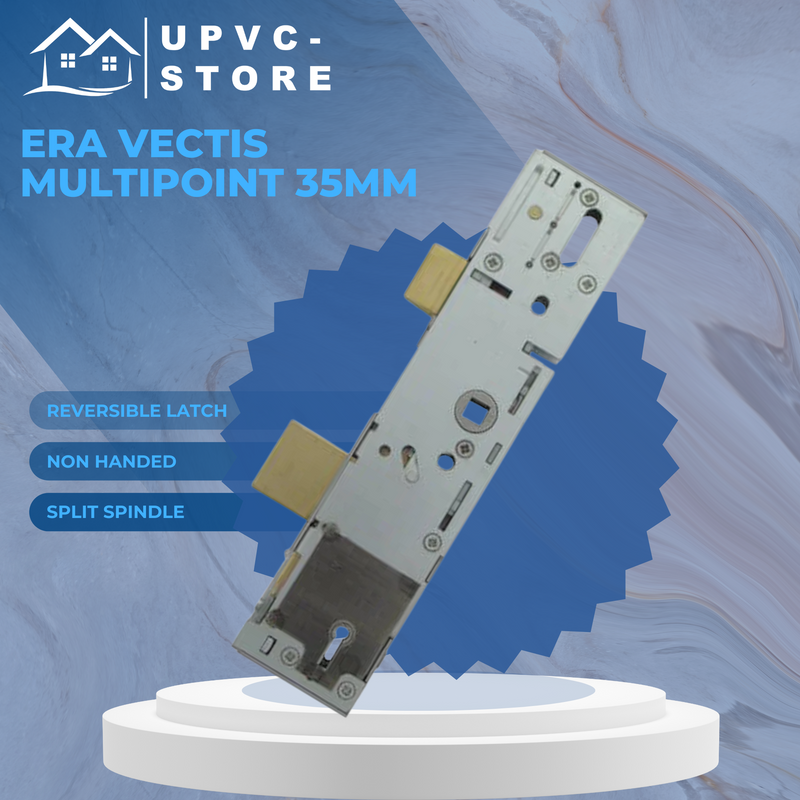

ERA Saracen Vectis 5 Lever 35mm Backset Multipoint Door Lock

Why replace your entire door lock when the issue is often just the gearbox? The ERA Saracen Vectis Replacement Gearbox offers a cost-effective and efficient solution to repair your door lock without needing a full replacement. This non-handed lock is suitable for both left and right-handed doors and comes with a 35mm backset.

Please Note: This gearbox is sold as a replacement part only and does NOT include a lock faceplate.

Key Features:

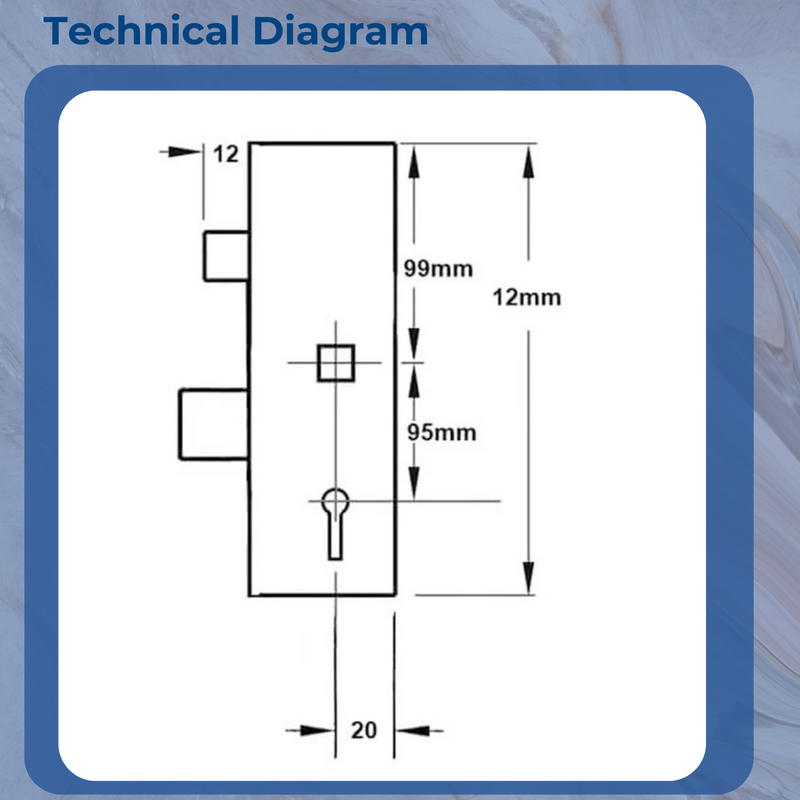

• Backset: 35mm for precise fitting
• PZ Centres: 95mm
• Case Length: 220mm
• Deadbolt Thickness: 7mm
• Deadbolt to Latch Distance: 60mm
• Spindle Size: 8mm

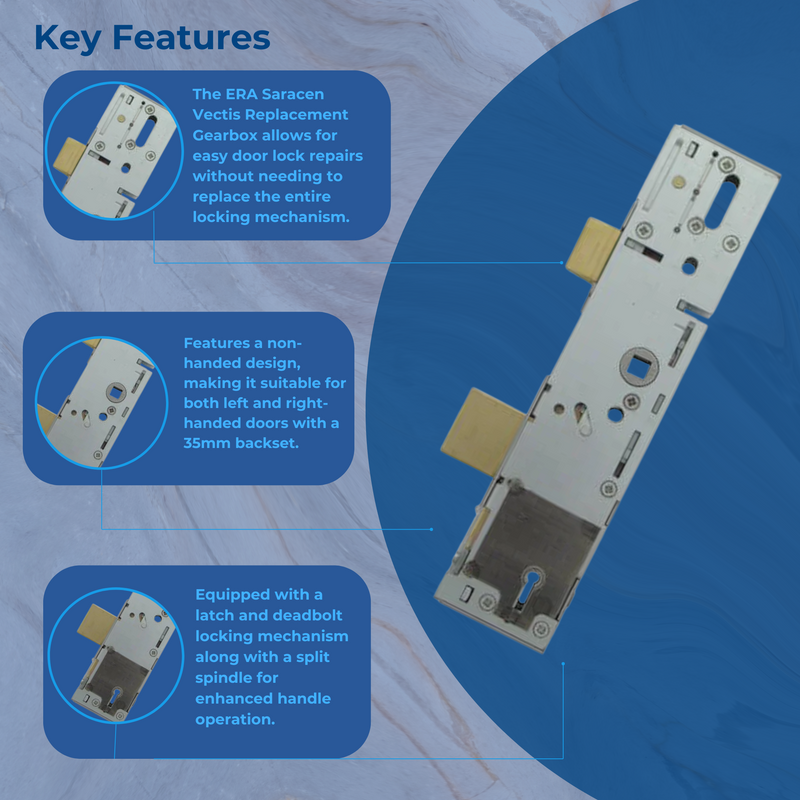

• Non-Handed Design: Fits both left and right-handed doors
• Secure Locking: Latch and deadbolt locking mechanism
• Split Spindle: For enhanced handle operation

What’s Included?

• 1 x ERA Saracen Vectis 5 Lever 35mm Backset Multipoint Door Lock
• 3 x Keys

How to Reverse the Centre Latch:

1. Remove the screw located at the end of the latch.
2. Rotate the latch 180 degrees.
3. Slide the latch back into place.
4. Replace and tighten the screw.

This genuine replacement gearbox ensures smooth operation, reliable security, and hassle-free installation for your multipoint door lock system.
