GU Ferco Latch 4 Rollers Lift Lever
by GU Ferco
Original price
$124.00
-
Original price
$124.00
Original price
$124.00
$124.00
-
$124.00
Current price
$124.00

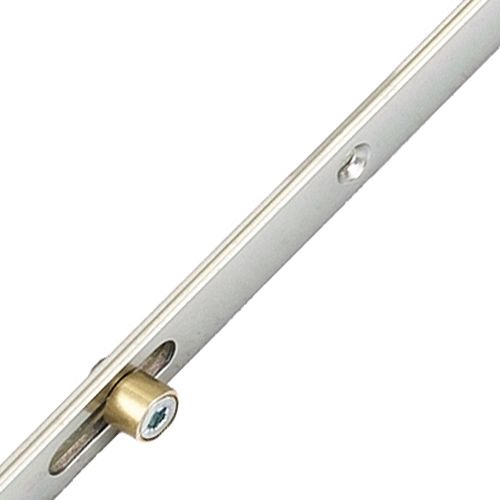

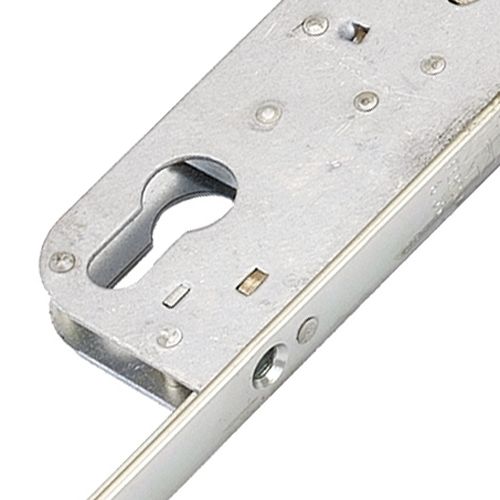

Old style GU Ferco latch only, 4 roller locks which are easily identifiable by their 70mm centres.
Backset: 28mm and 35mm.
Centres: 70mm.
Operation: Lift lever.
Latch reversal: Depending on date of manufacture either - Push the latch in to reveal a screw in side of case. Undo screw to remove the latch, reverse, reinsert and replace screw or Insert small flat bladed screwdriver in the small slot on side of case marked R/L. Push upwards to release latch, reverse and reinsert.
Technical Information-
Centres: 70mm
Case height: 198mm
Case depth: Backset + 16mm
Overall length: 2200mm
Distance between outer rollers: 1405mm
Distance between inner rollers: 446mm
Backset: 28mm and 35mm.
Centres: 70mm.
Operation: Lift lever.
Latch reversal: Depending on date of manufacture either - Push the latch in to reveal a screw in side of case. Undo screw to remove the latch, reverse, reinsert and replace screw or Insert small flat bladed screwdriver in the small slot on side of case marked R/L. Push upwards to release latch, reverse and reinsert.
Technical Information-
Centres: 70mm
Case height: 198mm
Case depth: Backset + 16mm
Overall length: 2200mm
Distance between outer rollers: 1405mm
Distance between inner rollers: 446mm
