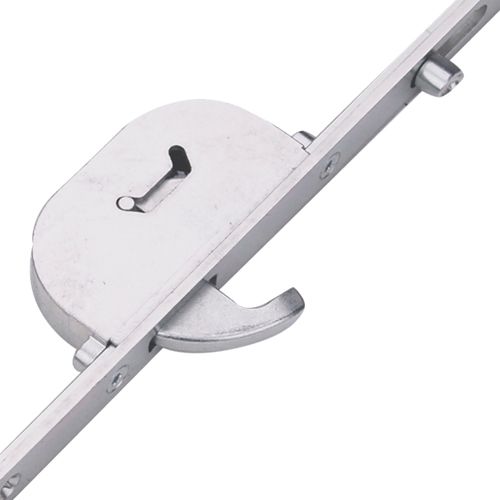

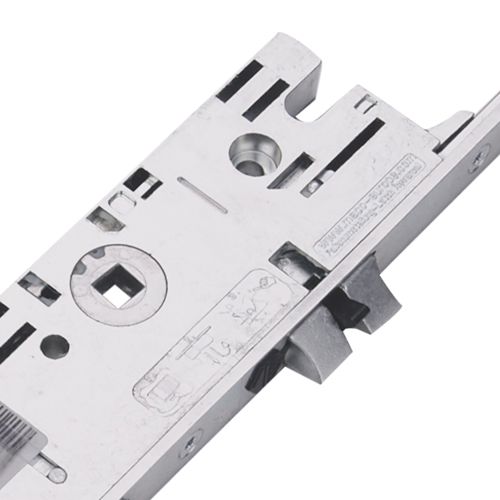

Maco CTS Latch, Deadbolt, 2 Rollers, 2 Hooks

The CTS lock is the new range from Maco but the locking points are in different positions so do not directly replace old locks.
Operation: Lift lever


Latch reversal: Push serrated button on side of case up to release latch, reverse and reinsert latch


Technical Information-

Case height: 202mm
Case Depth: Backset + 16mmli>
Centres: 92mm
Distance between hooks: 1490mm
Distance between rollers: 1507mm
