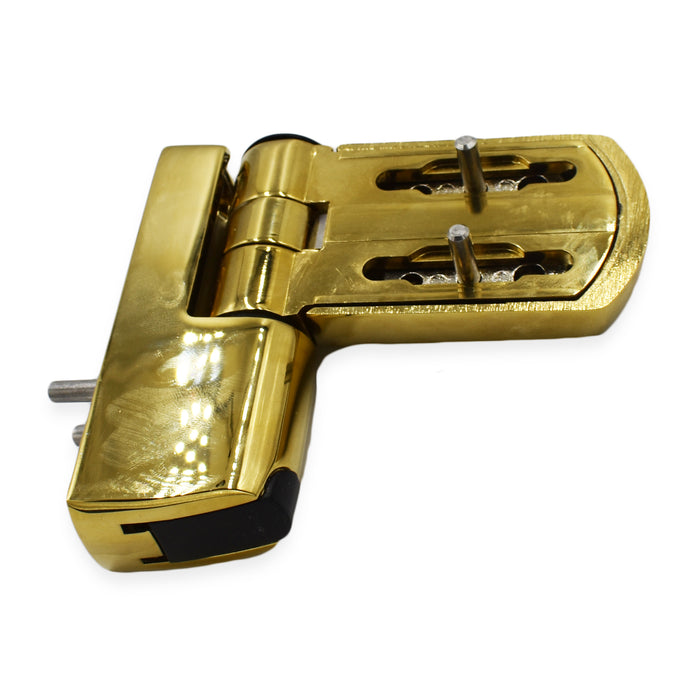

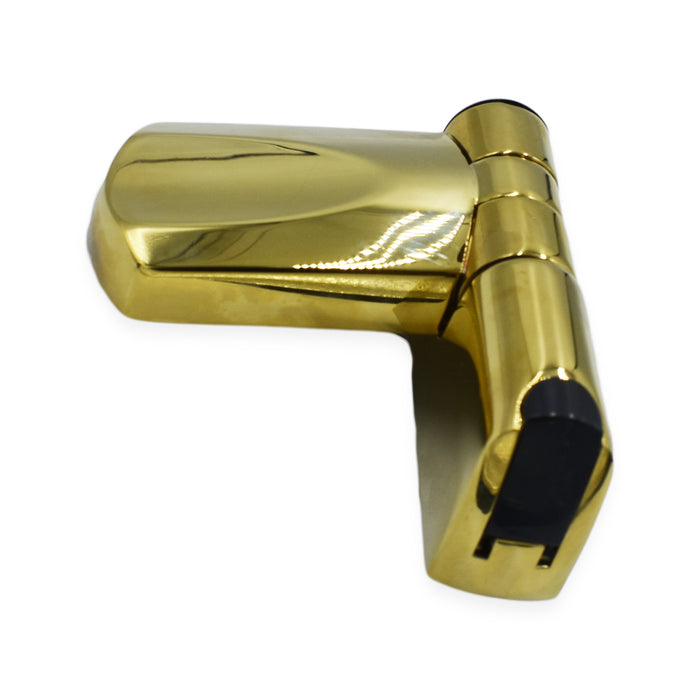

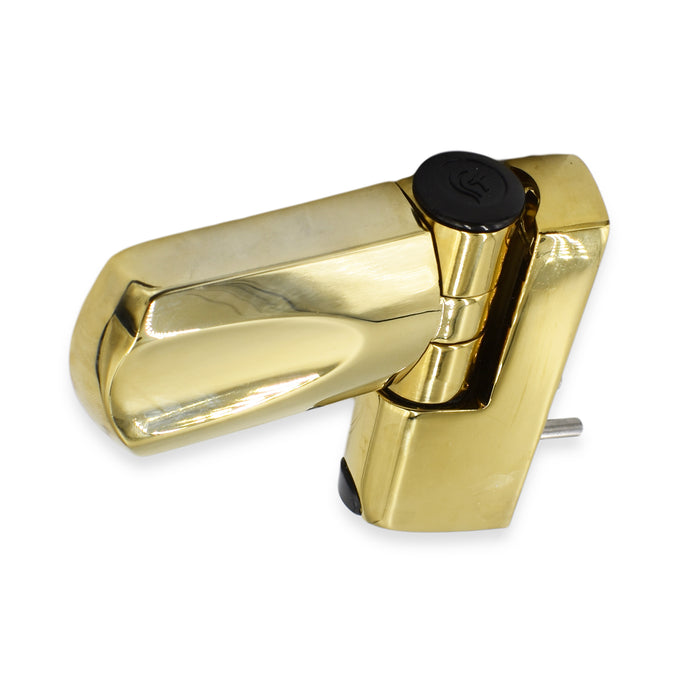

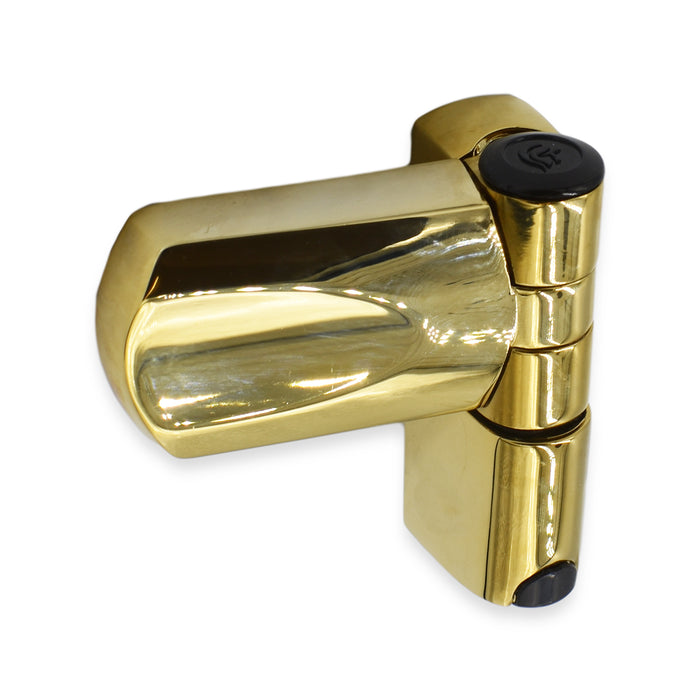

TROJAN PATRIOT FLAG HINGE IN GOLD FOR UPVC DOOR

by Trojan

Sold out
Original price $20.00 - Original price $20.00
Original price
$20.00
$20.00 - $20.00
Current price $20.00

Product Manufacture Code- TRO-0740-2005-GO Extremely rare discontinued Patriot Flag Hinge


Trojan Patriot Flag Door Hinges

A door hinge ideal for UPVC door profiles, adjustable in 3 dimensions with concentric compression adjustment.



KEY PRODUCT FEATURES

  • Pre assembled ready to fit.
  • Unique integral flag cover allowing easy access to lateral adjustment.
  • Compression adjusts in linear motion with no affect on lateral adjustment which reduces the possibility of the door ‘binding’ in operation.
  • Available in a range of finishes including Gold (PVD)
  • All finishes are UV rated.


TESTING AND ACCREDITATION


Salt Spray - Zinc substrate has been tested at an independent UKAS test laboratory to BS EN 1670 and has achieved grade 4 classification across all finishes.
PAS 23/24 compatible.
Operational durability - tested to 100,000 cycles.


PRODUCT MATERIAL SPECIFICATIONS


Zinc die cast components - ZL2.
Stainless steel parts are - 430 S17 stainless steel.
Plastic parts are Nylon 66, UV stabilised ABS and ACETAL.


NOMINAL STEP HEIGHTS AND SHIMS

High hinge - TRO-0740-2005-GO = 19.25mm stack height.
High shim - 0740-025 = 7.50mm


ADJUSTMENT


Height: + 7.0mm.
Compression: +/- 1.75mm.
Lateral: +/- 5.5mm.


MAXIMUM WEIGHT CARRYING CAPACITY


2 hinges 80kg - 3 hinges 120kg.
