3D Adjustable uPVC Door Flag Hinge — 16 / 19 / 22mm
Pre-assembled, non-handed and fully adjustable in situ — the installer’s choice for a fast, secure and draught-free fit on uPVC and composite doors.
|
STEP HEIGHTS
16 / 19 / 22mm
profile upstand
|
MAX DOOR WEIGHT
80kg
across 3 hinges
|
3D ADJUSTMENT
+8 · ±6 · ±1.5mm
height · lateral · comp.
|
The Trojan Patriot Plus is a high-security 3D adjustable flag hinge for modern uPVC doors and compatible composite doors. Supplied pre-assembled and ready to fit, it pairs a slim, unobtrusive appearance and concealed fixings with precise in-situ adjustment and a patented anti-lift security feature for use as part of a tested door assembly.
Because it is non-handed, one hinge suits both left- and right-hung doors — ideal for van stock and replacements. Full 3D adjustment lets you correct a dropped door, tighten a poor seal or square up a leaf without lifting it off, so jobs and call-outs are finished faster and cleaner.
Key features
| ✓ Pre-assembled and ready to fit — no on-site build | ✓ Full in-situ 3D adjustment — no need to unhang |
| ✓ Patented anti-lift security feature | ✓ Non-handed — fits left- and right-hung doors |
| ✓ Slim frame plate with concealed fixings | ✓ Extra location pins reduce twist and movement |

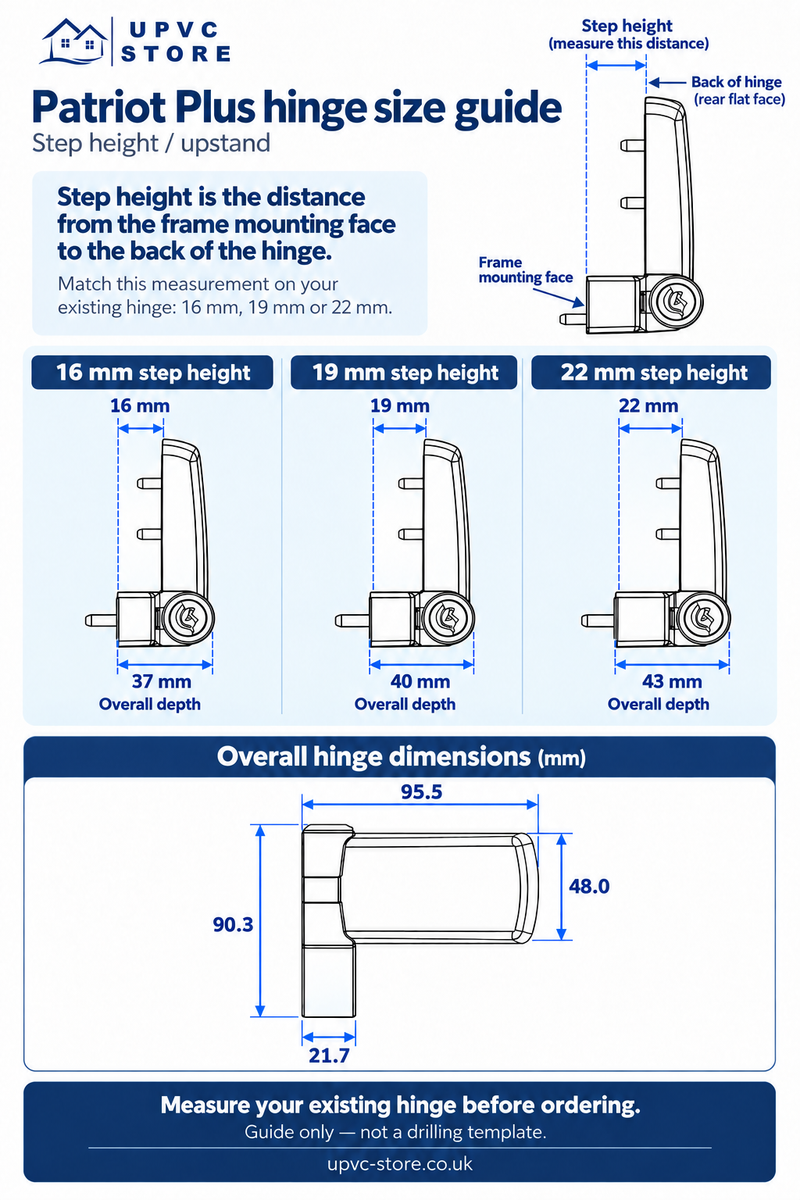

Choosing the right step height
The step height (also called the upstand or backset) is the distance from the outer face of the frame to the top edge of the door sash where the hinge sits. Match it to one of the three sizes:
|
16mm
code 0785-2001
|
19mm
code 0785-2002
|
22mm
code 0785-2003
|
Not sure? Compare or measure your existing hinge, or send us a photo with the measurement and we’ll confirm the size. Patriot Plus packers/shims in 1mm, 2mm and 6mm are available separately to fine-tune the fit.
Technical specification
| Brand | Trojan (Yale DWS / ASSA ABLOY) |
| Part code base | 0785 — 16mm 0785-2001, 19mm 0785-2002, 22mm 0785-2003 |
| Door types | uPVC and many composite doors (16–22mm upstand) |
| Handing | Non-handed (universal, left- or right-hung) |
| Step heights | 16mm, 19mm, 22mm |
| Max door weight | 80kg using three hinges |
| Security | Patented anti-lift feature; PAS 24 accredited when used as part of a suitable tested door assembly (the hinge alone is not a standalone PAS 24 certificate) |
| Cycle test | Conforms to EN 1191 — tested to 100,000 cycles |
| Corrosion resistance | Tested to BS EN 1670 (Grade 4 or higher depending on finish) |
| Materials | Zinc alloy body, stainless steel Grade 430, GF nylon, UV-stabilised ABS and acetal |

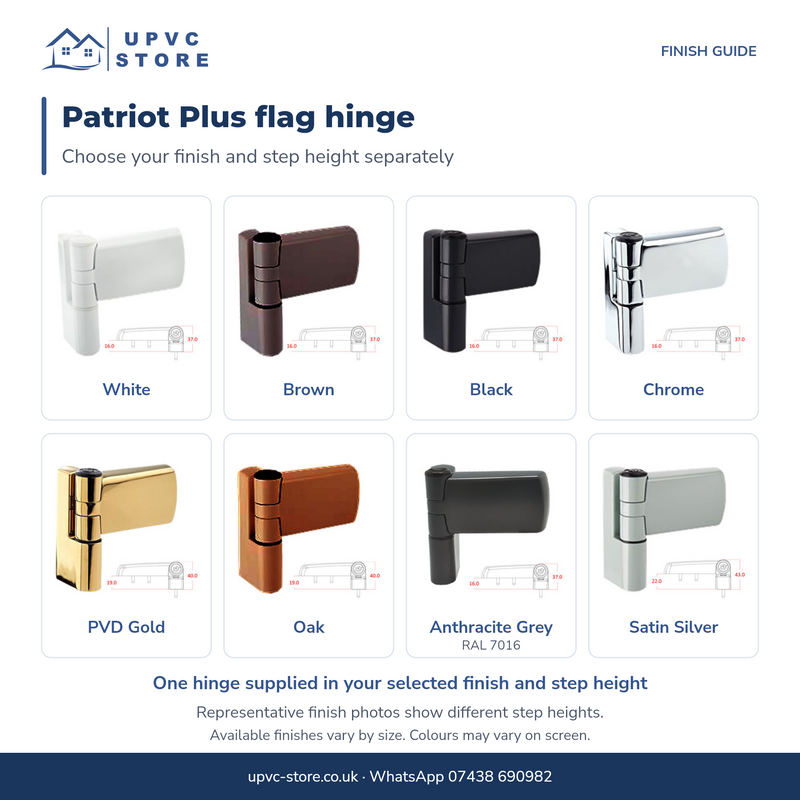

| Finishes | White, Black, Brown, Satin Silver, Chrome, PVD Gold, Oak, Anthracite Grey RAL 7016 (availability per the options above) |
| Guarantee | Up to 10-year mechanical guarantee when correctly installed and maintained (subject to manufacturer/UPVCSTORE terms; surface-finish cover may vary by finish) |
3D adjustment at a glance
| Adjustment | Range | Tool |
|---|---|---|
| Height (vertical) | +8mm / -0 | 5mm hex key |
| Lateral (side to side) | ±6mm | 5mm hex key |
| Compression (in / out) | ±1.5mm | 4mm hex key |
Tip: make small changes and spread the total movement evenly across all hinges on the door, checking operation after each adjustment.
Fitting overview
01 |
Prepare & drill. Set the Patriot Plus jig to the required step height, clamp to frame and sash, and drill the location-pin holes with a 4.0mm drill bit. |
02 |
Fit to frame. Locate the frame plate on its pins and fix into the reinforcing using suitable 4.8mm screws (length to suit your profile and steel). |
03 |
Fit to sash. Hang the leaf onto the pivot, fix the sash plate into the pre-drilled holes, then clip the cover into place. |
04 |
Adjust. Set height and lateral with a 5mm hex key and compression with a 4mm hex key, spreading the movement evenly across all hinges. |
↓ Download the Patriot Plus fitting guide (PDF)
Removing a door (anti-lift): the door cannot simply be lifted off. Open the door, fully unscrew the self-retaining cover screws on each hinge, then pull each flag cover towards the centre of the door until it clicks — only then can the leaf be lifted off the pins.
| ✓ 1 × Trojan Patriot Plus flag hinge in your chosen finish and step height (frame body, flag, pivot and cover caps) |
| ✗ Fixing screws are not included — use 4.8mm screws to suit your profile’s reinforcing |
| + Packers/shims (1mm, 2mm, 6mm) available separately to fine-tune the step height |
Frequently asked questions
Which step height do I need — 16, 19 or 22mm?
Measure the step from the frame face to the top of the sash where the hinge sits and choose the closest size, or match your existing hinge. If in doubt, send us a photo and measurement and we’ll confirm.
Is the Patriot Plus handed?
No — it is non-handed, so the same hinge works on left- and right-hung doors, simplifying stock and replacements.
Is this hinge PAS 24?
It is PAS 24 accredited when used as part of a suitable tested door assembly. The hinge on its own is not a standalone PAS 24 certificate — PAS 24 applies to the complete doorset.
Will it fit a composite door?
Yes — it suits many composite doors that take this style of flag hinge with suitable steel reinforcing and a 16–22mm upstand. Confirm the profile and reinforcing with your door supplier first.
How do I take a door off Patriot Plus hinges?
Because of the anti-lift feature you can’t just lift it off. Open the door, fully unscrew the self-retaining cover screws, release each flag cover until it clicks, then lift the leaf off the pins.
