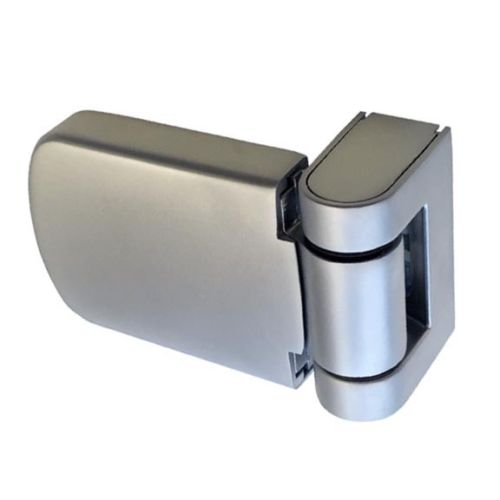

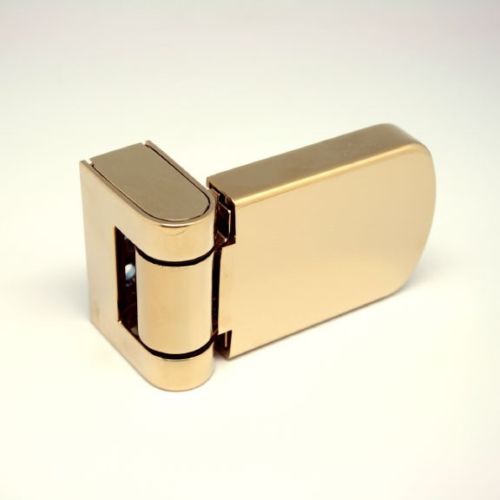

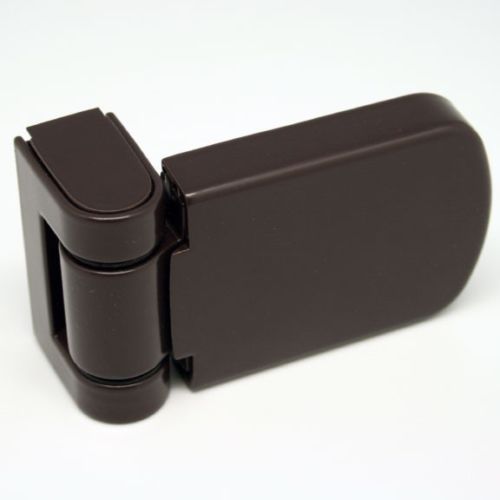

uPVC Double Glazing Composite Door Flag Hinge Delta PAS24 Multiple Colours

This high quality door hinge is supplied in 5 parts to allow for quick and easy installation. The innovative design means the hinge will hold the door firmly in place once compression and adjustments have been made. Minimising the likelihood of dropping from occurring.


Features:
Can meet the requirements of PAS24
Adjustment guide
Protective cover on front of the hinge
Die cast cover caps to give perfect colour match
4mm Hex or Allen Key provided to fit vertical, horizontal & compression adjustment screws
Suites with Kore by Window Ware window and door hardware
Hinge pin security screw is only accessible when the door is in opening position
Sash cover is a slide fit, held securely whilst cover fixing screws are installed
Conveniently packed in trays made of recycled material containing 3 hinges
Tested to 100,000 cycles
Load performance:
tested to 100KG with 3 hinges
500Hrs corrosion resistance
Finishes Available:
White
Black
PVD Gold
Chrome
Satin Silver
Tan
Brown
Anthracite Grey
Available in 18, 21 and 23mm variants for larger profile upstands
