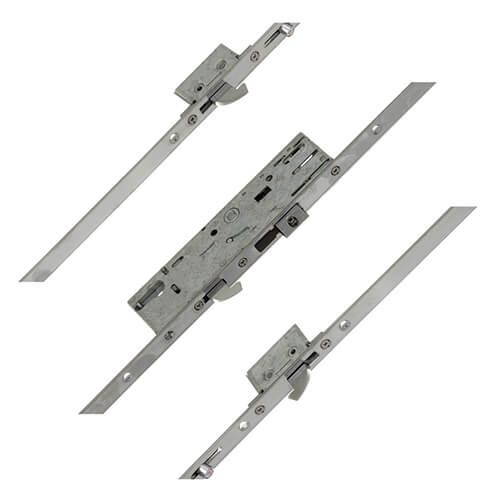

Yale YS170 Latch and 3 Hooks. Long Version, Square 16mm x 2200mm faceplate

Yale's newest multipoint lock is the YS170 which features a central hookbolt for increased security and easily reversible latch.

Operation: Lift lever or split spindle nightlatch.

Latch reversal: Undo the screw or screws (depending on the model) in the latch to remove. Reverse, reinsert and replace screw(s).

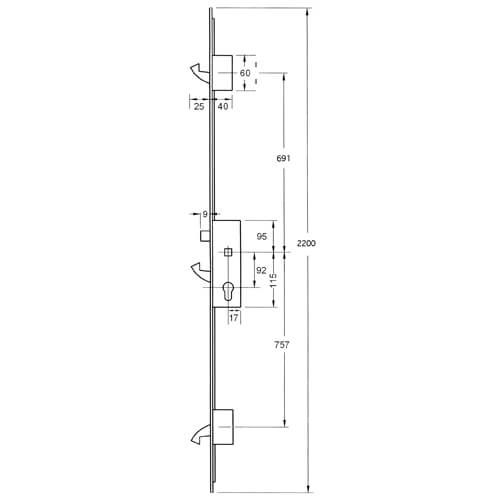

Technical Information-

• Centres: 92mm
• Case height: 210mm
• Case depth: 35 Backset + 17mm
• Overall length - 2200mm
• Distance between hooks - 1448mm
